PIC MICROCONTROLLER & APPLICATION

Training Code: ITPPIC

Microcontroller Training 8051 LudhianaThe comprehensive module is a through Introduction to the PIC controllers to Programming concepts. This Course enables a student, a technologist or a hobbyist to develop microcontroller based systems using Microchip PIC Processor. The need of time is that every engineer should equip with Embedded Technologies.

Microcontroller Training 8051 LudhianaThis course of Embedded System is composed around PIC18F4520 Microcontroller. This Course cover complete details about PIC18F4520microcontroller technology include techniques for burning Flash ROM of Microcontroller, Circuit designing etc. So, utilize your talent with technology of present and technology of the future...

PIC MICROCONTROLLER AT A GLANCE

PIC is a family of Harvard architecture microcontrollers made by Microchip Technology, derived from the PIC1640 originally developed by General Instrument's Microelectronics Division. The name PIC initially referred to "Peripheral Interface Controller".

PICs are popular with both industrial developers and hobbyists alike due to their low cost, wide availability, large user base, extensive collection of application notes, availability of low cost or free development tools, and serial programming (and re-programming with flash memory) capability.

Source: Wikipedia

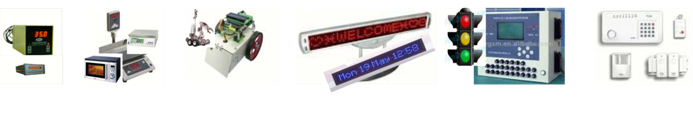

PIC APPLICATIONS

  • Scroll MessageDisplay
  • Remote Control Applications
  • Industrial Application
  • Data Loggers
  • Security Systems
  • Measuring Instruments
  • Digital weighing Machine
  • Robotics

Training Features

Training program is designed to consider complexity involved in designing of embedded system. In embedded system programmer has to deal with both hardware and software. Code debugging is complex and code execution is also not transparent to user, so keeping all these in minds, we specially focus on following points…

  • Practical oriented training.
  • Study material is given along with training program.
  • Real world examples are discussed during training.
  • Various debugging techniques are demonstrated during training program.
    Read More

OPPORTUNITIES AFTER THE COURSE

Microchip’s PIC controllers are widely used processor in embedded system market. Microchip is the prominent name in the 8 bit processor market. Microchip provides development tools for PIC. Development boards for PIC are also available in the market. Many products are based on PIC controllers. So many big, medium and small sized companies are working on 8 bit PIC controllers. PIC opens door to the world of embedded system. Learning PIC will be highly useful in making career in embedded system, either for getting job or making own product on PIC.

COURSE DESCRIPTION

  • Module 1: Introduction
    • Introduction of Embedded System
    • Evolution in Microcontroller technology
    • Past, Present & Future of Embedded System
  • Module 2: Microcontroller PIC18F4520
    • Hardware Details
    • Pin Diagram
    • PIC Architecture
    • Interrupts and Timers
    • Microcontroller PIC Assembly Language
    • MPLABIDE MPASM
  • Module 3: Assembly Language
    • Assembly Language of PIC Microcontroller
    • Use of Assemblers & Simulator
    • Programming for PIC
    • Examples programs for PIC
  • Module 4: IO Device Interface and Practical
    • Study of Input Output Devices
      • LED Display,7-Segment
      • DIP Switch
      • Intelligent LCD Display
      • Matrix Keyboard
      • Stepper Motors and Types of Stepper Motors
      • Serial Communication Concepts
      • Practices on interfacing circuits
      • Practices of ICP
      • ADC, EEPROM,
      • Opto-Isolators, Relay
      • I2C,SPI Protocol
      • Serial Memory
      • On chip Peripherals PWM,Module 5: Advance assemble and C Language
    • Preprocessor directives
    • Inline assembly in C
    • Calling of Assembly function in C
    • Convert all Assembly Program in C
    • HI-TECH C Complier
  • Module 6: Project
    Projects in Embedded System using PIC
  • Module 7: Conclusion
    • Latest trends in embedded fields
    • Introduction to …
      • In Circuit Emulators
      • ICD debug interface
      • RTOS
Course Content: COURSE DURATION: PROJECTs:
  • CD Contents: Example Programs
  • PIC Articles
  • PIC Presentations
  • Development Tools
  • Imbuent Data Sheets
  • Imbuent Book of PIC18F4520 Microcontroller
40 Hours
  • Electronic Voting Machine
  • Robotic ARM
  • Remotely Controlled Application
* During training a project will be completed. Project expense will be beared by trainee.

REGISTRATION PROCEDURE

Registration procedure for Imbuent training program is quite simple. We have online facility for registration of course. Please go through following steps for course registration…

  • Select Course
  • Download Registration form from Imbuent site Click Here to download form
  • Make a DD (Demand Draft) equal to the amount of course fees (DD Should be in the name of “Imbuent Technologies Pvt. Ltd.” and payable at “LUDHIANA”)
  • Fill the online registration form Click Here to fill online registration form
  • You will receive an confirmation email from us soon with a valid registration number
  • Send us DD, with Training Form, which you can download from our website

In case of any difficulty please feel free to contact us.
