Imbuent 8051 DEVELOPMENT BOARD

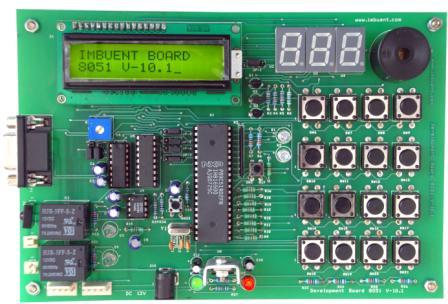

Imbuent 8051 DEVELOPMENT BOARDImbuent 8051 Development Board is ideal for quick start in 8051 based development. This board has most of peripheral devices like LCD Display, Matrix switch, EEPROM, 7-Segment Led Display, Serial Port, ISP. This is same which is used in Imbuent Training program "8051 Microcontorller and Applications.

Electronics Training Ludhiana
Product Code Price Of Single Unit* Deliverable With Board Data Sheet
IDB8051V830
  • 3000 INR
  • 60 USD
  • 8051 Development Board
  • Serial Cable
  • CD
  • Power Adapter
 Download
IDB8051V830SM
  • 3500 INR
  • 70 USD
  • Imbuent Development Board
  • Serial Cable
  • Stepper Motor
  • CD
  • Power Adapter
 Download

FEATURES OF Imbuent 8051 DEVELOPMENT BOARD

  • P89V51RD2xx 40 Pin DIP
  • In-System Programming (ISP)
  • Both Manual and Power On Reset
  • On- Board Compatible Serial Interface with D-Type Female Connector
  • 4 x 4 Matrix Keyboard
  • 16 x 2 Alphanumeric LCD and trimmer for contrast Control.
  • Three Multiplexed 7-Segment Displays
  • Two 12V Output Relays
  • Buzzer
  • Stepper Motor
  • Crystal Frequency : 11.0592 MHz
  • 24C02 2K Memory
  • 64 KB of on-chip flash user code memory with ISP with 1 KB RAM
  • Some I/O pins connected to headers for easy external connections
